KS Series

KS 50

- KS Series Module

Moment of Inertia Along the axis

l_X : Moment of Inertia Along the X-axis

l_Y : Moment of Inertia Along the Y-axis

	l_X	l_Y
units: mm⁴
KS 50	9.6×10³	1.34×10⁵

Model Number

KS 50 - 02 - P - 200 A 2 - F0 C S0

Item No.

Travel
02

Accuracy Grade
P: Precision Class C: Normal Class

Track Length
150, 200, 250, 300

Slide Type
A: Standard Type S: Light Load Type

Limit Switch
S0: Only limit orbit S1: Panasonic PM-Y45

Protecting Cover
C: Aluminium Cover B: Telescopic Cover None: No Cover

Motor Connection
F0 / F1 / F2 / F3 H0

Slide Number
1, 2

Basic Specification

Code		Ball Screw				Linear Guide
		Nominal Outside Diameter (mm)	Lead (mm)	Basic Dynamic Rated Load (N)	Basic Static Rated Load (N)	Basic Dynamic Rated Load (N)		Basic Static Rated Load (N)		Permissible Static Moment
						Basic Dynamic Rated Load (N)		Basic Static Rated Load (N)		Pitching M_P (N·m)				Deflection M_Y (N·m)				Rolling M_R (N·m)
						Slide Block A	Slide Block S	Slide Block A	Slide Block S	Slide Block A1	Slide Block A2	Slide Block S1	Slide Block S2	Slide Block A1	Slide Block A2	Slide Block S1	Slide Block S2	Slide Block A1	Slide Block A2	Slide Block S1	Slide Block S2
KS 5002	P	8	2	2136	3489	8007	-	12916	/	116	545	/	/	116	545	/	/	222	444	/	/
KS 5002	C	8	2	1813	2910	8007	-	12916	/	116	545	/	/	116	545	/	/	222	444	/	/

Code	Length of Rail (mm)	Repetitive Accruacy		Traveling Parallelism		Max. Driving Torque
Code	Length of Rail (mm)	P	C	P	C	P	C
KS 50	150	±0.003	±0.005	0.010	/	4	2
	200
	250
	300

Dimensions

L2 (mm)	L1 (mm)	(mm)		G (mm)	K (mm)	n	(kg)
L2 (mm)	L1 (mm)	A1	A2	G (mm)	K (mm)	n	A1	A2
150	220	70	-	35	80	2	1	-
200	270	120	55	20	160	3	1.2	1.4
250	320	170	105	45	160	3	1.4	1.6
300	370	220	155	30	240	4	1.6	1.8

※ Note : The Shaft diameter can be special made in Ø4, please contact LIMON

Motor Connection

KS 50

F0

F1

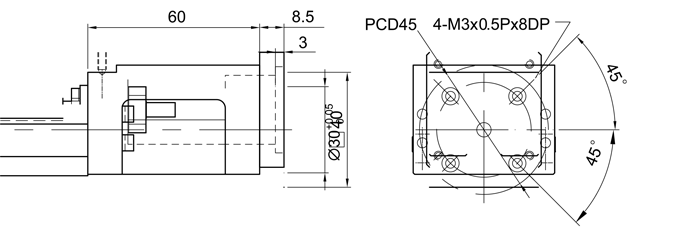

F2

F3

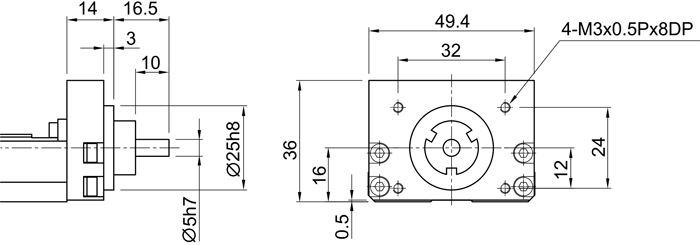

H0

T1

T2

T3

Mitsubishi

輸出功率	Motor	Weight (kg)	適用法蘭					附剎車 (kg)	Drive	Weight (kg)	備註
輸出功率	Motor	Weight (kg)	KS 40	KS 50	KS 60	KS 86	KS 100	附剎車 (kg)	Drive	Weight (kg)	備註
10W	HC-AQ 0135D	0.19	-					0.29	M2-JR-03A5	0.2
20W	HC-AQ 0235D	0.22	-					0.32	M2-JR-03A5	0.2
50W	HF-KP 053	0.35	F1		F1 / T1	F2	-	0.75	MR-J3S-10A	0.8	220V
100W	HF-KP 13	0.56	F1		F1 / T1	F2	-	0.89	MR-J3S-10A
200W	HF-KP 23	0.94	-			F0 / T0	F0	1.6	MR-J3S-20A
400W	HF-KP 43	1.5				F0 / T0	F0	2.1	MR-J3S-40A	1
750W	HF-KP 73	2.9				-	F1	4	MR-J3S-70A	1.4

Panasonic

輸出功率	Motor	Weight (kg)	適用法蘭					附剎車 (kg)	Drive	Weight (kg)	備註
輸出功率	Motor	Weight (kg)	KS 40	KS 50	KS 60	KS 86	KS 100	附剎車 (kg)	Drive	Weight (kg)	備註
50W	MSMD5AZP1	0.32	F2		F2 / T2	F3	-	0.53	MADDT 1105	0.8	110V
50W	MSMD5AZP1	0.32						0.53	MADDT 1205		220V
100W	MSMD011P1	0.47						0.68	MADDT 1107		110V
100W	MSMD012P1	0.47						0.68	MADDT 1205		220V
200W	MSMD021P1	0.82	-			F1 / T1		1.3	MADDT 2110	1.1	110V
200W	MSMD022P1	0.82						1.3	MADDT 1207	0.8	220V
400W	MSMD041P1	1.2						1.7	MADDT 3120	1.5	110V
400W	MSMD042P1	1.2						1.7	MADDT 2210	1.1	220V
750W	MSMD082S1	2.3				F4	F2	3.1	MADDT 3520	1.5	220V

安川伺服馬達

輸出功率	Motor	Weight (kg)	適用法蘭					附剎車 (kg)	Drive	Weight (kg)	備註
輸出功率	Motor	Weight (kg)	KS 40	KS 50	KS 60	KS 86	KS 100	附剎車 (kg)	Drive	Weight (kg)	備註
10W	SGMMV-A1A2A21	0.13	-					0.215	SGDV-R90A01A	0.9	200V
20W	SGMMV-A2A2A21	0.17	-					0.27	SGDV-R90A01A		200V
50W	SGMAV-A5ADA61	0.3	F1		F1 / T1	F2	-	-	SGDV-R70A01A		有鍵
	SGMAV-A5ADA2C							-			無鍵
	SGMAV-A5ADA21							0.75			中慣量
100W	SGMAV-01ADA64	0.4						0.89	SGDV-R90A01A
200W	SGMAV-02ADA65	0.9	-			F0 / T0	F0	1.6	SGDV-1R6A01A
400W	SGMAV-04ADA66	1.2				F0 / T0	F0	2.1	SGDV-2R8A01A	1
750W	SGMAV-08ADA67	2.6				-	F1	4	SGDV-5R5A01A	1.5

負載規格

極限開關

極限軌道

尺寸	a	b	c	d	e	f
KS 40	36.5	44.3	1	9.8	10.5	12
KS 50	41.3	48	1	10.5	10.2	11
KS 60	46.2	52.8	4	14	3.2	13
KS 86	59	65.7	8	18	3	18
KS 100	66	73	10	20	4.2	20

含護蓋

KS 50

L2 (mm)	L1 (mm)	(mm)		G (mm)	K (mm)	n	(kg)
L2 (mm)	L1 (mm)	A1	A2	G (mm)	K (mm)	n	A1	A2
150	220	70	-	35	80	2	1.1	-
200	270	120	55	20	160	3	1.3	1.5
250	320	170	105	45	160	3	1.6	1.8
300	370	220	155	30	240	4	1.8	2.0
