KS Series
KS 86
- KS Series Module
Moment of Inertia Along the axis
lX : Moment of Inertia Along the X-axis
lY : Moment of Inertia Along the Y-axis
| units: mm4 | ||
| lX | lY | |
|---|---|---|
| KS 86 | 7.445×104 | 1.134×104 |
Model Number
KS 86 - 10 - P - 340 - A - 2 - F0 - C - S0
| Item No. |
|---|
| Travel |
|---|
| 10, 20 |
| Accuracy Grade |
|---|
| P: Precision Class C: Normal Class |
| Track Length |
|---|
| 340, 440, 540, 640, 740, 940 |
| Slide Type |
|---|
| A: Standard Type S: Light Load Type |
| Limit Switch |
|---|
| S0: Only limit orbit S1: Panasonic PM-Y45 |
| Protecting Cover |
|---|
| C: Aluminium Cover B: Telescopic Cover None: No Cover |
| Motor Connection |
|---|
| F0 - F6 H0 T0 / T1 / T6 |
| Slide Number |
|---|
| 1, 2 |
Basic Specification
| Code | Ball Screw | Linear Guide | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Outside Diameter (mm) |
Lead (mm) |
Basic Dynamic Rated Load (N) |
Basic Static Rated Load (N) |
Basic Dynamic Rated Load (N) |
Basic Static Rated Load (N) |
Permissible Static Moment | |||||||||||||||
| Pitching MP (N·m) | Deflection MY (N·m) | Rolling MR (N·m) | |||||||||||||||||||
| Slide Block A |
Slide Block S |
Slide Block A |
Slide Block S |
Slide Block A1 |
Slide Block A2 |
Slide Block S1 |
Slide Block S2 |
Slide Block A1 |
Slide Block A2 |
Slide Block S1 |
Slide Block S2 |
Slide Block A1 |
Slide Block A2 |
Slide Block S1 |
Slide Block S2 |
||||||
| KS 86D10 | P | 15 | 10 | 7144 | 12642 | 31458 | / | 50764 | / | 622 | 3050 | / | / | 622 | 3050 | / | / | 1507 | 3014 | / | / |
| C | 6429 | 11387 | |||||||||||||||||||
| KS 86D20 | P | 20 | 4645 | 7655 | |||||||||||||||||
| C | 4175 | 6889 | |||||||||||||||||||
| Code | Length of Rail (mm) | Repetitive Accruacy | Traveling Parallelism | Max. Driving Torque | |||
|---|---|---|---|---|---|---|---|
| P | C | P | C | P | C | ||
| KS 86D | 340 | ±0.003 | ±0.005 | 0.015 | / | 15 | 10 |
| 440 | |||||||
| 540 | |||||||
| 640 | |||||||
| 740 | 0.020 | 17 | |||||
| 940 | 0.030 | 25 | |||||
Dimensions
| L2 (mm) | L1 (mm) | (mm) | H (mm) | n | m | (kg) | ||
|---|---|---|---|---|---|---|---|---|
| A1 | A2 | A1 | A2 | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 4 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 6 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
※ Note : The Shaft diameter can be special made in Ø4, please contact LIMON

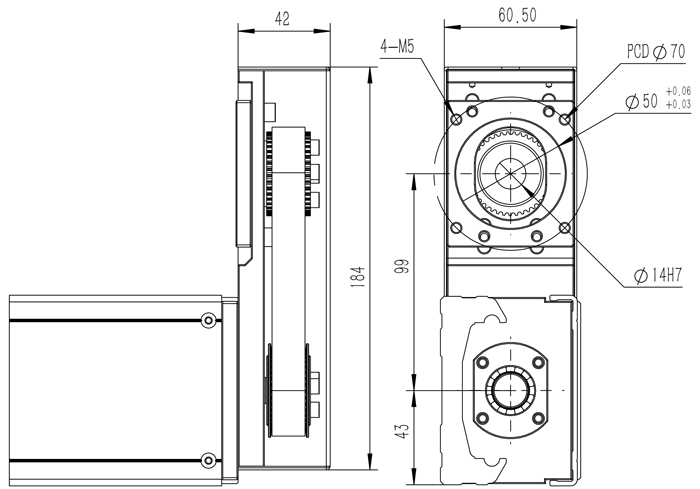

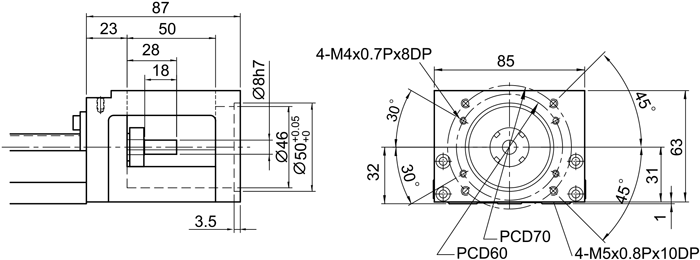

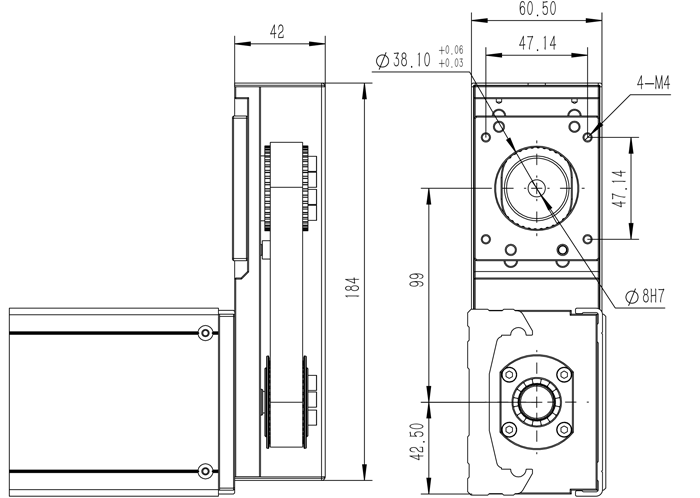

Motor Connection
KS 86D
F0
F1
F2
F3
F4
F5
F6
H0
T0
T1
T6
Mitsubishi
| 輸出 功率 |
Motor | Weight (kg) |
適用法蘭 | 附剎車 (kg) |
Drive | Weight (kg) |
備註 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KS 40 | KS 50 | KS 60 | KS 86 | KS 100 | |||||||
| 10W | HC-AQ 0135D | 0.19 | - | 0.29 | M2-JR-03A5 | 0.2 | |||||
| 20W | HC-AQ 0235D | 0.22 | 0.32 | ||||||||
| 50W | HF-KP 053 | 0.35 | F1 | F1 / T1 | F2 | - | 0.75 | MR-J3S-10A | 0.8 | 220V | |
| 100W | HF-KP 13 | 0.56 | 0.89 | ||||||||
| 200W | HF-KP 23 | 0.94 | - | F0 / T0 | F0 | 1.6 | MR-J3S-20A | ||||
| 400W | HF-KP 43 | 1.5 | 2.1 | MR-J3S-40A | 1 | ||||||
| 750W | HF-KP 73 | 2.9 | - | F1 | 4 | MR-J3S-70A | 1.4 | ||||
Panasonic
| 輸出 功率 |
Motor | Weight (kg) |
適用法蘭 | 附剎車 (kg) |
Drive | Weight (kg) |
備註 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KS 40 | KS 50 | KS 60 | KS 86 | KS 100 | |||||||
| 50W | MSMD5AZP1 | 0.32 | F2 | F2 / T2 | F3 | - | 0.53 | MADDT 1105 | 0.8 | 110V | |
| MADDT 1205 | 220V | ||||||||||
| 100W | MSMD011P1 | 0.47 | 0.68 | MADDT 1107 | 110V | ||||||
| MSMD012P1 | MADDT 1205 | 220V | |||||||||
| 200W | MSMD021P1 | 0.82 | - | F1 / T1 | 1.3 | MADDT 2110 | 1.1 | 110V | |||
| MSMD022P1 | MADDT 1207 | 0.8 | 220V | ||||||||
| 400W | MSMD041P1 | 1.2 | 1.7 | MADDT 3120 | 1.5 | 110V | |||||
| MSMD042P1 | MADDT 2210 | 1.1 | 220V | ||||||||
| 750W | MSMD082S1 | 2.3 | F4 | F2 | 3.1 | MADDT 3520 | 1.5 | 220V | |||
安川伺服馬達
| 輸出 功率 |
Motor | Weight (kg) |
適用法蘭 | 附剎車 (kg) |
Drive | Weight (kg) |
備註 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KS 40 | KS 50 | KS 60 | KS 86 | KS 100 | |||||||
| 10W | SGMMV-A1A2A21 | 0.13 | - | 0.215 | SGDV-R90A01A | 0.9 | 200V | ||||
| 20W | SGMMV-A2A2A21 | 0.17 | 0.27 | ||||||||
| 50W | SGMAV-A5ADA61 | 0.3 | F1 | F1 / T1 | F2 | - | - | SGDV-R70A01A | 有鍵 | ||
| SGMAV-A5ADA2C | 無鍵 | ||||||||||
| SGMAV-A5ADA21 | 0.75 | 中慣量 | |||||||||
| 100W | SGMAV-01ADA64 | 0.4 | 0.89 | SGDV-R90A01A | |||||||
| 200W | SGMAV-02ADA65 | 0.9 | - | F0 / T0 | F0 | 1.6 | SGDV-1R6A01A | ||||
| 400W | SGMAV-04ADA66 | 1.2 | 2.1 | SGDV-2R8A01A | 1 | ||||||
| 750W | SGMAV-08ADA67 | 2.6 | - | F1 | 4 | SGDV-5R5A01A | 1.5 | ||||
負載規格
極限開關
極限軌道
| 尺寸 | a | b | c | d | e | f |
|---|---|---|---|---|---|---|
| KS 40 | 36.5 | 44.3 | 1 | 9.8 | 10.5 | 12 |
| KS 50 | 41.3 | 48 | 1 | 10.5 | 10.2 | 11 |
| KS 60 | 46.2 | 52.8 | 4 | 14 | 3.2 | 13 |
| KS 86 | 59 | 65.7 | 8 | 18 | 3 | 18 |
| KS 100 | 66 | 73 | 10 | 20 | 4.2 | 20 |
含護蓋
KS 86D
| L2 (mm) | L1 (mm) | (mm) | H (mm) | n | m | (kg) | ||
|---|---|---|---|---|---|---|---|---|
| A1 | A2 | A1 | A2 | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 6.5 | 7.3 |
| 440 | 540 | 310 | 200 | 20 | 4 | 3 | 7.8 | 8.6 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 9.0 | 9.8 |
| 640 | 740 | 510 | 400 | 20 | 6 | 4 | 10.3 | 11.3 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 11.6 | 12.4 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 13.0 | 13.8 |
